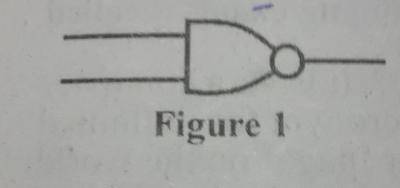

The logic gates represented in Figure 1 is called

The logic gates represented in Figure 1 is called

The logic gates represented in Figure 1 is called

A.

AND gate

B.

NAND gate

C.

NOR gate

D.

OR gate

View answer & explanation

Correct answer is B

No explanation has been provided for this answer.
