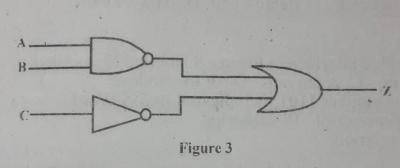

The logical equation for the logic circuit in Figure 3 is...
The logical equation for the logic circuit in Figure 3 is
¯A+B ¯C
Z=A.B+C
Z=A+B.C
Z=¯A.B + ¯C
Correct answer is D
No explanation has been provided for this answer.
