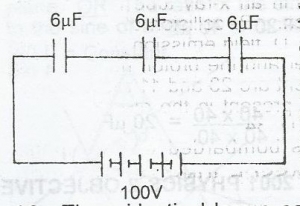

What is the total energy stored by the capacitors?
...What is the total energy stored by the capacitors?
2.0 x 10-4J
1.0 x 10-4J
9.0 x 10-2J
1.0 x 10-2J
Correct answer is D
Energy = 12CV2=12×2×10−6×1002
= 1.0 x 10-2J
