Calculate the reactance of the inductor in the circuit diagr...
![Calculate the reactance of the inductor in the circuit diagram shown above [\(\pi = \frac{22}{7}\)]](/img/aptitude-tests/questions/15428.jpg "Calculate the reactance of the inductor in the circuit diagram shown above [\(\pi = \frac{22}{7}\)]")

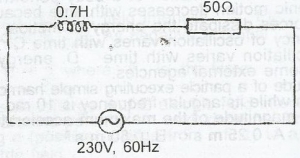

Calculate the reactance of the inductor in the circuit diagram shown above [π=227]
A.
132Ω
B.
214Ω
C.
264Ω
D.
269Ω
Correct answer is C
XL=2πfL=2×π×60×0.7=264Ω
