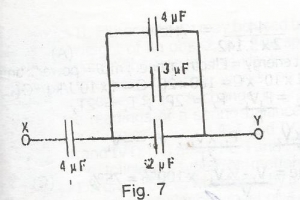

In the circuit Shown above, calculate the effective capacitance between X and Y
A.
3/4µF
B.
2 \frac{10}{13} µF
C.
12µF
D.
4 \frac{12}{13} µF
E.
13µF
Correct answer is B
No explanation has been provided for this answer.
