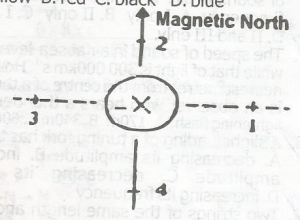

The wire X in the figure above is at right angles to the plane of the paper and carries a current into the paper. at which of the points labelled 1-4, will the magnetic flux density due to this current be in the same direction as that of the horizontal component of earth's magnetic field
