The circuit diagram above contains four ammeters W, X, Y ...

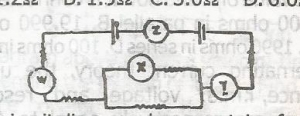

The circuit diagram above contains four ammeters W, X, Y and Z, Which of the following statements about the ammeter readings is correct
The reading of W is equal to that of Y and twice that of X
The reading of Y is greater than that of Z
The readings of W and Y are equal and each is greater than that of X
The reading of Z is equal to the sum of the readings of Y and W
Correct answer is C
No explanation has been provided for this answer.
