The total resistance measured at PQ in the diagram above ...

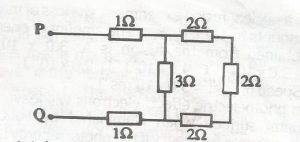

The total resistance measured at PQ in the diagram above is
18.0Ω
11.0Ω
4.0Ω
2.0Ω
Correct answer is C
The three 2 ohms are in series, therefore the total resistance is
R=R1+R2+R3
Rtotal=2+2+2=6 ohms.
resketching circuit;
6 ohms is used to replace the three 2 ohms which is therefore placed by the 3 ohms resistor.
The 3 ohms and 6 ohms resistors are in parallel, so the combined resistance is
R=R1xR2R1+R2
R=3×63+6
R=189=2 ohms.
Resketching circuit:
The 2 ohms is used to replace the 3 ohms and 6 ohms laying side-by-side.
Therefore, the 3 resistors (1 ohm, 1 ohm, and 2 ohms) are in series.
Thus, the total resistance is
R=(R1+R2+R3)
Rtotal=1+1+2=4 ohms.
Therefore, the total resistance measured at PQ is 4 ohms.
