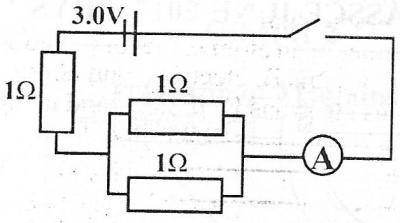

A circuit is set up as shown in the diagram above. When t...
A circuit is set up as shown in the diagram above. When the key is closed, the ammeter reading will be
6A
4A
2A
1A
Correct answer is C
The resistors are connected both in parallel and series. To calculate the total resistance, we have:
For the parallel connection: \(\frac{1}{R} = \frac{1}{1} + \frac{1}{1}\)
\(\frac{1}{R} = 2 \implies R = 0.5\Omega\)
For the series connection: \(R_{total} = (1 + 0.5)\Omega = 1.5\Omega\)
Recall, \(V=IR\)
\(3 = 1.5I \implies I = \frac{3}{1.5} =2A\)
