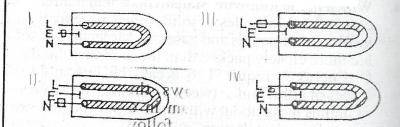

The diagrams above illustrate electrical connections to the element of an electric pressing iron.In which of the connections is the fuse correctly fixed?
