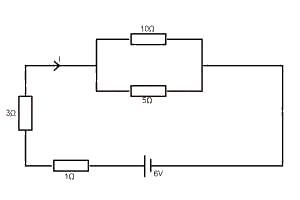

In the diagram above , the current I is
...
In the diagram above , the current I is
A.
3/8
B.
9/11
C.
11/9
D.
8/3
Correct answer is B
| I = | _E |
| R+r |
For parallel of 5Ω and 10Ω
1/R = 1/10 + 1/5 = 1+2/10 = 3/10
∴R = 10/3
Total R = 31/3 + 3 x 1 = 71/2
∴I = 6/71/3 = 6/1 x 3/22 = 18/22 = 9/11
∴I = 9/11
