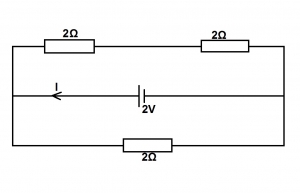

Calculate the current, I in the diagram shown above.
Calculate the current, I in the diagram shown above.
(Neglect the internal resistance of the cell)
4.0A
2.0A
1.0A
0.5A
0.1A
Correct answer is C
R = 2 + 2 = 4 Ω; 1/R = ¼ + ¼ = 2/4; R = 2Ω
∴ I = V/R = 2/2 = 1A
