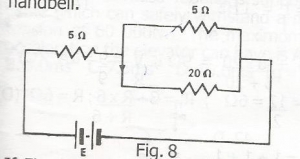

if the fig above E is an accumulator with negligible internal resistance. and the EMF 9.0V, The the total current is
